PRODUCT SYSTEM
Two lines — sensing instruments and acquisition cards — covering both DAS and BOTDA technology.
Portable and rack-mount instruments: the DAS acoustic sensing instrument reaches 110 km at 5.8 kg, while the BOTDA Brillouin analyzer reaches 104 km with ±1 °C and ±20 με accuracy. Fibre in, results out — no external optics to align.
View category
Core acquisition and demodulation boards for instrument makers and integrators: 500 MSPS sampling at 14-bit, 1/2/4 channels, built-in pulse compression and frequency-diversity fading suppression, all core chips domestically sourced.
View categoryFEATURED
DAS-22-80KM
DAS-22-80KM is a portable distributed acoustic sensing instrument with up to 110 km single-channel range, 3–26 m spatial resolution, 0.01 Hz–100 kHz frequency response, 5.8 kg weight and 33–55 W power consumption, supporting polarization, spatial and frequency diversity reception with coherent-fading suppression.
View specifications

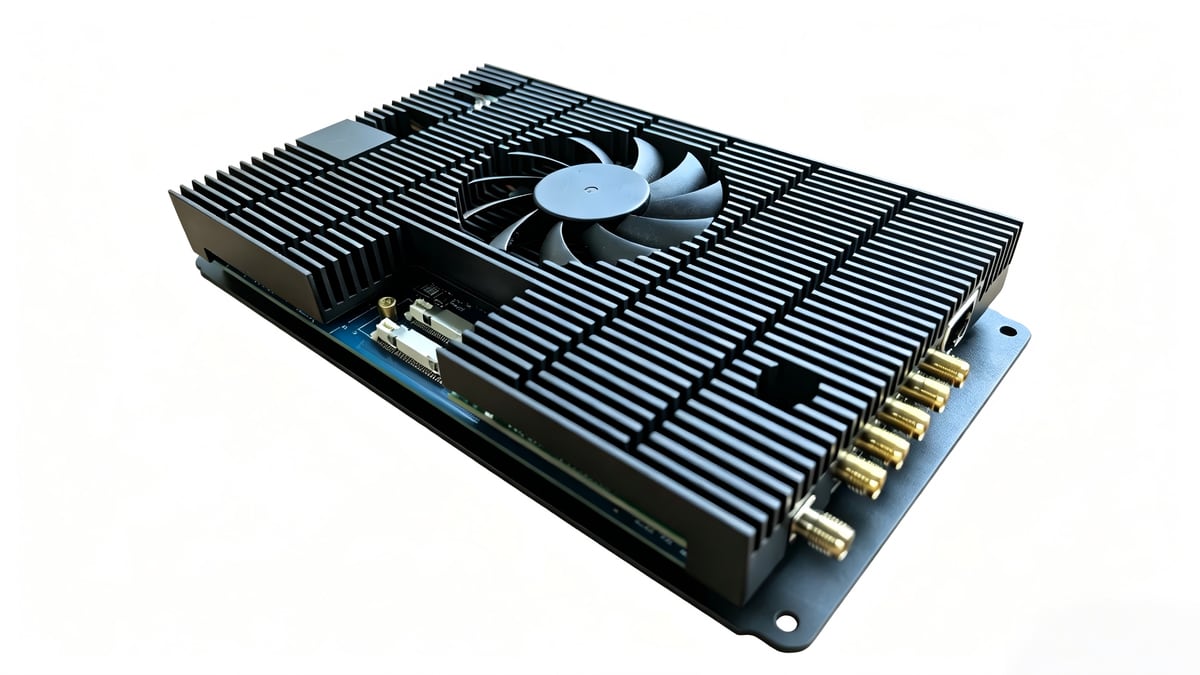

ZC-DAS-002
ZC-DAS-002 is a high-speed acquisition and computing card dedicated to distributed fiber-optic vibration sensing: 500 MHz ADC at 14-bit, 1/2/4 channels, built-in pulse compression and frequency-diversity fading suppression, homodyne plus 80M/200M heterodyne demodulation, with fully domestically sourced core chips.
View specificationsWHY FBAK
Core acquisition boards, optical modules and portable instruments are all developed in-house — optics, demodulation and algorithms included.
Polarization, spatial and frequency diversity with pulse compression suppress coherent fading on long links, improving SNR and positioning accuracy.
Key devices and chips are domestically sourced, meeting China xinchuang procurement requirements with a self-controlled supply chain.
Up to 110 km on a single channel with 3–26 m spatial resolution — one unit covers an entire trunk pipeline or OPGW route.
CONTACT
Tell us your application, key specifications and quantity. Our engineers will reply with a selection and quotation proposal within one business day.
